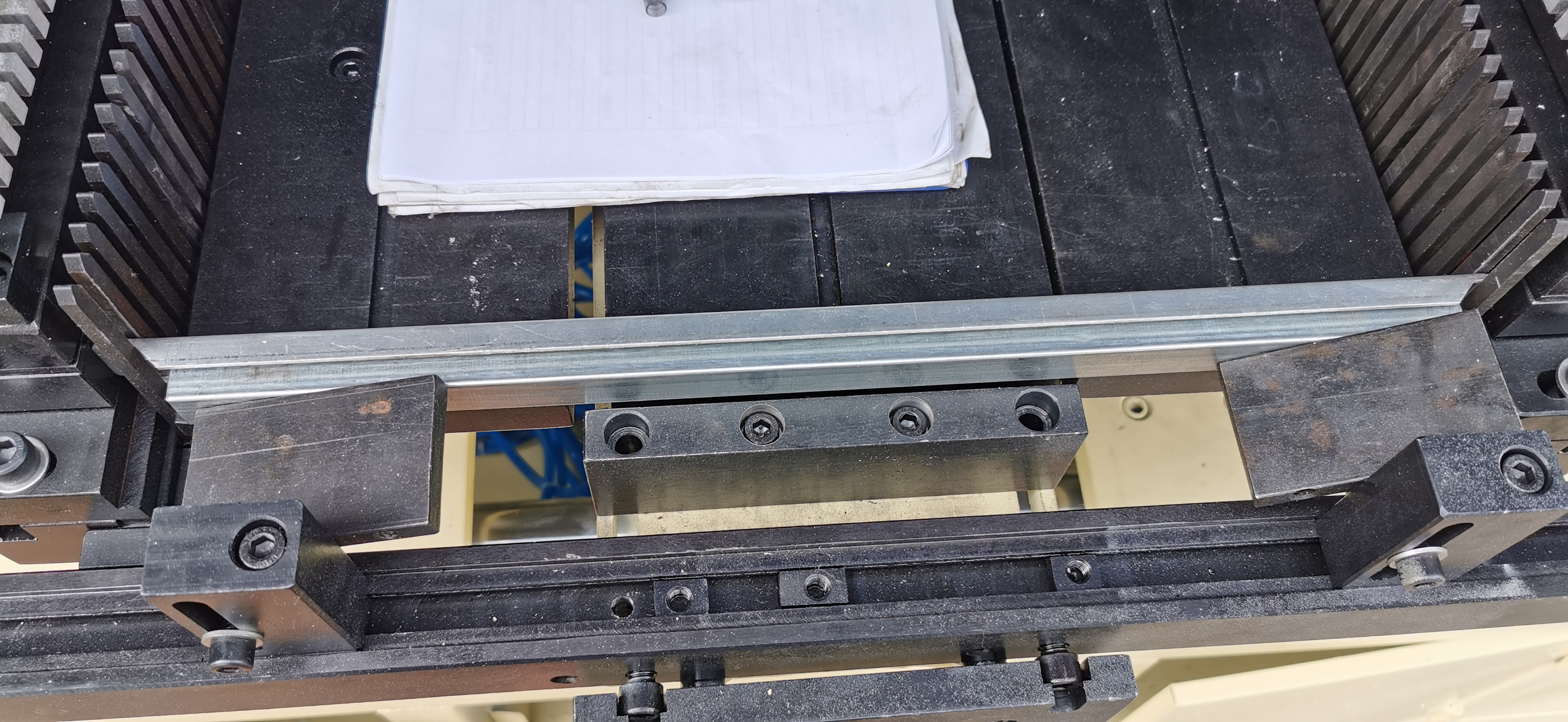

Aluminum core assembling machine in manual installation headplate
Product introductions:
The aluminum core assembling machine in manual installation headplate is used for assembling heater radiator cores.
The machine has the advantages of stable and reliable working performance, easy operation, low noise, accurate positioning of flat tube center, and even distribution of fins.
The assembled radiator core has a high assembling accuracy and a good appearance, which ensures a better brazing effect in the brazing furnace.
Product parameters:
| shape | unregular | mould | can customise |
| after-sale service | yes | design style | can customise |
| Air pressure requirements | 0.8Mpa | Driving mode | Pneumatics |
| Voltage, power | 220V/50Hz,2.5kw | Number of cylinders | 6--8 |
| running speed | adjustable | Core size | 1000*900*56mm |
| production efficiency | 60sec. | Workstation | 1 |
| Number of preset models | Non. | Maximum size of head plate | 120mm |
| Programmable | Non. | Machine weight | 800kg |
| brand name | SUNHOPE | warranty | 12 months |
| Safety device | radiator core builder is equipped with photoelectric light curtain to protect the safety of the operator | Efficiency | About 4-5 Minutes One Core |
Product features:
1.can suitable to different types of tube
2.can adapt to different size of cores
3.It has a fews types of core builder,for example condenser core builder machine,intercooler core builder machine,heater aluminium core assembling machine and water tank core machine.
About us:
Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.
If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
FAQ:
1.Does it can assemble the same height of fins in the radiator core and condenser core in the same machine?
No,because it has big difference between the radiator tube and condenser tube,it can’t be mixed use.
2..Does it can assemble different heights of fins in the same machine ?
No,at the moment the core building machine only can assemble the cores which has single specification height of fins.If it needs to assemble different heights of fins,it needs to customize from us.
3.How long can finish assembling the radiator core by the semi automatic core building machine?
The experienced workers can assemble one aluminium core builder in 3-5 minutes,depends on the size of core.
4.What’s the requirements for assembling the head plate of automatic core building machine?
The requirements for assembling the head plate of automatic core building machine is relatively high,the allowable tolerance is small,less burr,the direction of each hole of tube must maintain smooth.
